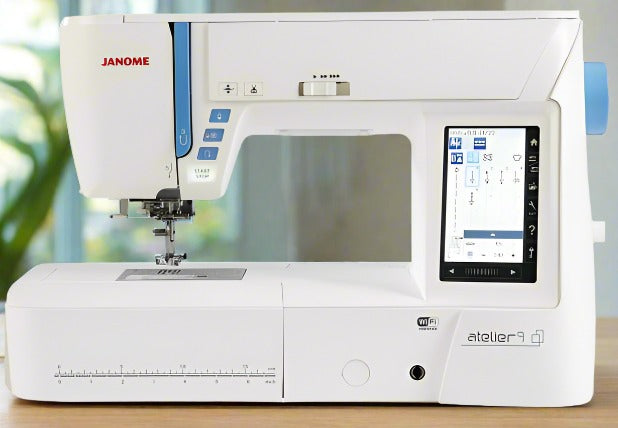

Janome Atelier 9
This is the latest in the Atelier line-up and the first with programmable embroidery
The first machine of it's type with wi-fi built in.
Supplied with 3 x hoops:
861402205 Hoop FA10a (100 x 40mm)
859824303 Hoop FA10a Template
861803509 Hoop RE20a (170 x 200mm)
861803303 Hoop Template RE20a
861804407 Hoop SQ14a (140 x140mm)
861804304 Hoop Template SQ14a
Atelier 9 Specifications
|
Computerised Embroidery Machine
|
Horizontal Rotary Hook
|
|
Free Arm / Flat Bed Conversion
|
Top Loading – Category D
|
|
Machine Size (exc. Emb. Unit) : W508xH316xD237mm
|
Approximate Weight: 11.9kg
|
|
Work Space Width 8.3”
|
Approximate Weight with Embroidery Unit 15.3kg
|
|
Superior Feed System (SFS) / 7 Piece Feed Dog
|
Full Colour Touch Screen 62.8mm x 110.8mm
|
|
Maximum Stitch Width: 9mm
|
Maximum Sewing Speed: 1000 s.p.m.
|
|
Maximum Stitch Length: 5mm
|
Built In Stitches: 300 including 11 Buttonholes
|
|
USB & Direct PC Connection
|
WiFi
|
|
Acufeed Flex (Dual Feed)
|
Lettering – Upper & Lower Case
|
|
Variable Zigzag
|
Remote Thread Cutter Port
|
|
Needle Up / Down with Memory
|
Built in Memory (4MB)
|
|
91 Needle Positions
|
Tracing Function
|
|
Needle Threader
|
Detachable Embroidery Unit
|
|
Snap On Feet
|
Up to 200,000 Stitches per Design
|
|
Easy Change Needle Plate
|
Built in Embroidery – 250 Designs - 10 Fonts
|
|
Easy Set Bobbin
|
Monogramming – 2 & 3 letter
|
|
Automatic Tension
|
Horizontal Spool Pin
|
|
Automatic Thread Cutter (scissors)
|
Auto De Clutch Bobbin Winder
|
|
Drop Feed
|
Speed Control Slider
|
|
Memory + Turnover Memory
|
Tapering Function
|
|
Satin Stitch Elongation
|
Multi Language: 13 Languages
|
|
Start / Stop Button
|
Multi Voltage
|
|
Automatic Presser Foot Pressure
|
Cover - Semi Rigid (Black Canvas)
|
|
Twin Needle Limitation Key
|
Carry Handle
|
|
Upper Thread & Bobbin Thread Sensor
|
Origin: Taiwan
|
Standard Accessories:
|
|
|
Optional Extras:
|
Standard Accessories:
|
|
|
859814001
|
•” Seam Foot (O)
|
202085001
|
3-Way Cording Foot (H)
|
|
862822013
|
Automatic Button Hole Foot (R)
|
202086002
|
Applique Foot (AP)
|
|
859832005
|
Buttonhole Stabiliser Plate
|
202097006
|
Beading Foot narrow (L1)
|
|
859807001
|
Blind Hem Foot (G)
|
202098007
|
Beading Foot Wide (L2)
|
|
846652607
|
Bobbin Holder for embroidery Yellow
|
202099008
|
Bias Binder Foot (W)
|
|
859858007
|
Bobbin Holder Cleaner
|
202084000
|
Border Guide Foot (FB)
|
|
859811008
|
Button Sewing Foot (T)
|
202082008
|
Buttonhole Foot (B)
|
|
832820007
|
Button Shank Plate
|
202135007
|
Circular Attachment
|
|
859825016
|
Cloth Guide
|
202089005
|
Clear View Quilting Foot & Guide Set (OV)
|
|
862410106
|
Couching Foot PC-1
|
859439008
|
Cloth Setter
|
|
862410117
|
Couching Foot PC-2
|
202144009
|
Concealed Zipper Foot (Z)
|
|
862410405
|
Couching Yarn Guide Bar
|
202087003
|
Ditch Quilting Foot (S)
|
|
862410508
|
Couching Yarn Guide
|
202100003
|
Edge Guide Foot (SE)
|
|
859817004
|
Dual Feed Foot Holder (Twin)
|
202110006
|
Free Motion Couching Foot Set (FMC)
|
|
859833006
|
Dual Feed Foot Holder (Single)
|
202096005
|
Gathering Foot (V)
|
|
859819109
|
Dual Feed Foot (AD) (Twin)
|
202025003
|
Long Quilting Bar Guide Set
|
|
859835101
|
Dual Feed Foot (VD) (Single)
|
202130002
|
Optic Magnifier (3 lenses low/med/high strength)
|
|
202149004
|
Dual Feed Open Toe Foot (UD) (Twin)
|
202093002
|
Pintucking Foot Wide (N1)
|
|
859829009
|
Dual Feed Piecing Foot (OD) (Twin)
|
202094003
|
Pintucking Foot Narrow (N2)
|
|
859838001
|
Dual Feed Zipper Foot (ED) (Single)
|
202090009
|
Ribbon /Sequin Foot (RS)
|
|
Standard Accessories:
|
Optional Extras:
|
|
859816025
|
Embroidery Foot (P)
|
202081007
|
Rolled Hem Foot 4mm (D2)
|
|
859839002
|
Embroidery/Darning Foot (PD-H)
|
202080006
|
Rolled Hem Foot 6mm (D1)
|
|
859836009
|
Free Motion Quilting Foot (QC)
|
202088004
|
Piping Foot (I)
|
|
859837000
|
Free Motion Quilting Foot (QO)
|
202095004
|
Ruffler Attachment (RF)
|
|
859812009
|
Free Motion Quilting Zigzag Foot (QV)
|
859429005
|
Spool Stand (2 Threads)
|
|
809136100
|
Hook Cover Plate (Slide Plate)
|
859430009
|
Spool Stand (5 Threads)
|
|
861402205
|
Hoop FA10a (100 x 40mm)
|
202083009
|
Straight Stitch Foot (ST)
|
|
859824303
|
Hoop FA10a Template
|
202091000
|
Ultra Glide Foot (U)
|
|
861803004
|
Hoop RE20a (170 x 200mm)
|
|
861803303
|
Hoop Template RE20a
|
|
861804005
|
Hoop SQ14a (140 x140mm)
|
TBC
|
Extension Table - Large Perspex
|
|
861804304
|
Hoop Template SQ14a
|
|
846417011
|
Knee Lifter (Straight Adj. small screw)
|
|
802424004
|
Lint Brush
|
|
861805305
|
Magnetic clamps x 4
|
|
859810007
|
Overedge Foot (M)
|
|
755802001
|
Quilt Guide Bar
|
|
859804008
|
Rolled Hem Foot (D)
|
|
859806011
|
Satin Stitch Foot (F)
|
|
859813000
|
Satin Stitch Foot Open Toe (F2)
|
|
803813203
|
Scissors (White)
|
|
820832005
|
Screw Driver (Winged)
|
|
560406001
|
Seam Ripper
|
|
822020307
|
Spool Cap/Holder (Large) x 2
|
|
822019004
|
Spool Cap/Holder (Small) x 2
|
|
202233006
|
Spool Holders (Special) x 2
|
|
809146000
|
Spool Pin (Spare)
|
|
859802006
|
Standard Foot (A)
|
|
862817107
|
Straight Stitch Needle Plate
|
|
860194002
|
Stylus Pen
|
|
850403006
|
USB Cable
|
|
859805009
|
Zipper Foot (E)
|
|
862453008
|
Acutools S CD-ROM
|
|
861807008
|
Embroidery Unit Case
|
|
043170108
|
Foot Control
|
|
862452007
|
Instructional DVD
|
|
862460008
|
Instruction Book
|
|
830515008
|
Power Lead
|
|
Bobbins x 4 (Plastic)
|
|
Needles
|
|
|
Embroidery Functions
|
|
Direct PC Link
|
Outer Memory Device: USB Memory Stick
|
|
Embroidery Format: “.jef”
|
Monogramming Fonts: 10
|
|
Maximum Embroidery Size: 170 x 200mm
|
Built In Embroidery Designs: 250
|
|
Embroidery Speed: 400 – 800 s.p.m.
|
2 & 3 Letter Monograms
|
|
Drag & Drop For Design Position Adjustment
|
Re-sizing: +/− 20%
|
|
Design Combination
|
Zoom In / Out
|
|
Flip: Vertical / Horizontal
|
Rotation: 1° or 45°
|
|
Time Indicator
|
Flexible Stitch Travel: Every 1, 10, 100 or 500 Stitches
|
|
Colour Grouping
|
Arcing Monograming
|
|
Duplicate
|
Corner & Centre Layout /Position Key
|
|
Single Colour Sew (For Monochrome)
|
|
|
|
|
|
|
